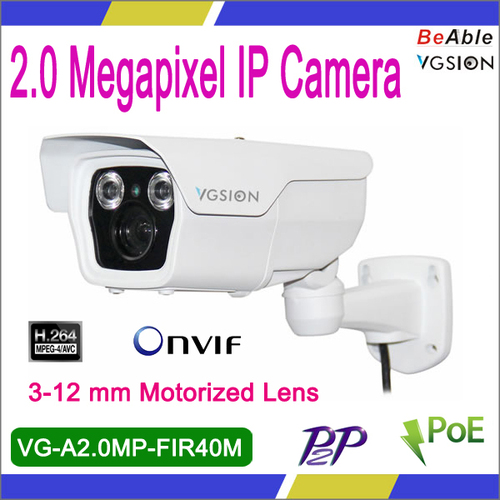

2.0 MP indoor & outdoor IP Camera

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Model No.:VG-A2.0MP-FIR40M

Main Features:
H.264 & MJPEG dual-stream encoding Max.1080P (19201080)25fps/HD 720P (1280720) 25fps Day/Night(ICR), 2DNR, AWB, AGC, BLC ONVIF protocol IP66,Outdoor housing Multiple network monitoring: Web viewer,Mobile view & Client software P2P Function,TF Card slot & POE function areoptional Built with 3-12 mm Motorized Lens (lens is controlled remotely)

Technology Data

Sensor	1/2.7 2.0 Megapixel AP9P006 CMOS+HI3516C
Effective Pixels	1920(H)1080(V)
Min.Illumination	Color: 0. 1Lux, B/W: 0.003Lux ; 0Lux(IR on)
Day/Night	Auto,dual IR-Cut filter
Lens	3-12 mm Motorized Lens
IR LED	2pcs Array IR Led 42mil, IR Range 40m
Max S/N Ratio	39dB
Electronic Shutter	Rolling Shutter
Interfaces
Audio Talkback	1 channel power MIC input, External access, AV interface
Audio Output	1 channel power speaker output, AV interface
Network Interface	10/100M BASE-TX,RJ-45 connector
Video Compression	H.264 Main Profile; MJPEG/JPEG Baseline
Resolution	1920*1080 25fps Main Streaming
Resolution	VGA 640*360 25FPS , Sub Streaming
Video Bitrate	128Kbps8Mbps,Supports CBR/VBR
Title OSD	Supports channel name, date, and video stream information overlay;
Title OSD	OSD location is adjustable
Image Orientation	image flip and mirror
Auto Image Control Functions	Auto Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)
Auto Image Control Functions	Auto Black Level Calibration (ABLC)
Image Controls	Color saturation, hue, gamma, sharpness (edge enhancement), lens correction,
Image Controls	defective pixel canceling, and noise canceling
Audio Compression	G.711
Two Way Audio	Support
Data storage	Video and Image
Recording	Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output	E-mail, Explorer, Software
Network protocol	TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP
ONVIF protocols	Support 2.0 version
Remote View	IE 6.0~8.0 , Firefox , Chrome ;max 10 users
Remote View	iPhone, ipad, Android
Environmental Casing	Waterproof (IP66 Rated), Outdoor Use
Installation	Brackets Included, Wall Mount
Operating Temperature	-22 C ~ 55 C
Operating Humidity	0% -85% RH
Power	DC12V 1A
POE	POE Class 3 IEEE802.3af (optional)
Power Consumption	9W(MAX)
