Product Description

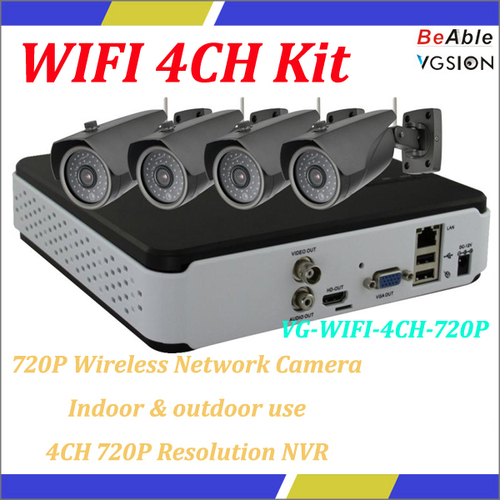

WIFI 4CH Kit

Camera Details:

720P Wireless Network Camera
36 pcs IR LEDs,3.6 mm lens
Indoor & outdoor use

NVR Details:

4CH 720P Resolution
With 4 CH POE Function (offer 15V power)
Support Max.1 Sata HDD (Max.4TB)
Support VGA /HDMI output
Support External WIFI /3G USB Module

No Need power for camera
No need setting in router, easy to realize remote surveillance
No need setting in NVR, easy to connect IPC to NVR
Support mobile surveillance

NVR	1pc
IP camera	4pcs
NVR power supply	1pc
Remote controller	1pc
NVR mouse	1pc
Camera Power supply	4pcs (DC12V)

Model	Kit model	VG-WIFI-4CH-720P
Style	Feature	720P WIFI NVR kit
IPC specification:
System	System source	Embeded LINUX OS HI3518
Sensor	Sensor	1.0Mega Pixel, 1/4" progressive scanning CMOS
	Illumination	Color:0.1 Lux F1.2,B/W:0 Lux F1.2(IR ON) 100W
	Lens	3.6mm mega fixed lens
Others	Video compression	H.264 High profile
	Video code rate	1Mbps~6Mbps
	Resolution	Main code stream:1280720,704576;Sub code stream:704576,352288
Standard	Waterproof level	IP67
	IR distance	25-30M
	Power supply mode	NVR POE
	Communication mode	P2P
	Dimension	191× 76 × 71 mm(color: white & Grey optional)
NVR specification:
System	System source	Embeded LINUX OS HI3515
System	System source	Simultaneously multi-record/playback/users/back-up
Interface	OS	16bit real color imaging OS menu, supporting moese
Interface	Image display	1/4 picture
Video	Input	4CH 720P(1280*720)
	playback	960P/720P
	monitor	VGA:HD;HDMI:HD
	Motion detection	Support
Video playback	Recorde mode	Manual/dynamic detection/timing
	Local playback	1CH playback
	Record query	Timing/Calendar/Event/Channel query
Storge back-up	Record storage	HDD/network
Storge back-up	Back-up mode	Network back-up/USB mobile mobile hard disk
Standard	Video output	1pc VGA,1 pc HDMI
	Video output	1 pc BNC,1 pc VGA
	Network interface	5pcs RJ45,10M/100M self-adaptio ethernet port, 4pcs supporting POE
	USB interface	2pcs USB interface
	HDD interface	1pc SATA interface(MAX 4T)
	Power supply	DC15V/5A
	Dimension	Black:215(L)x215(W)x45(H)mm;White:235(L)205(W)45(H)mm
